SMD LED Package Types Explained: 0402, 0603, 0805, 1206 and More

SMD LEDs are widely used in modern electronic products because they can be mounted directly onto printed circuit boards (PCBs), making them suitable for compact designs and automated assembly.

However, choosing an SMD LED is not simply a matter of selecting the smallest or brightest component. Package size, mounting configuration, optical requirements, PCB space, and the overall design of the product all need to be considered.

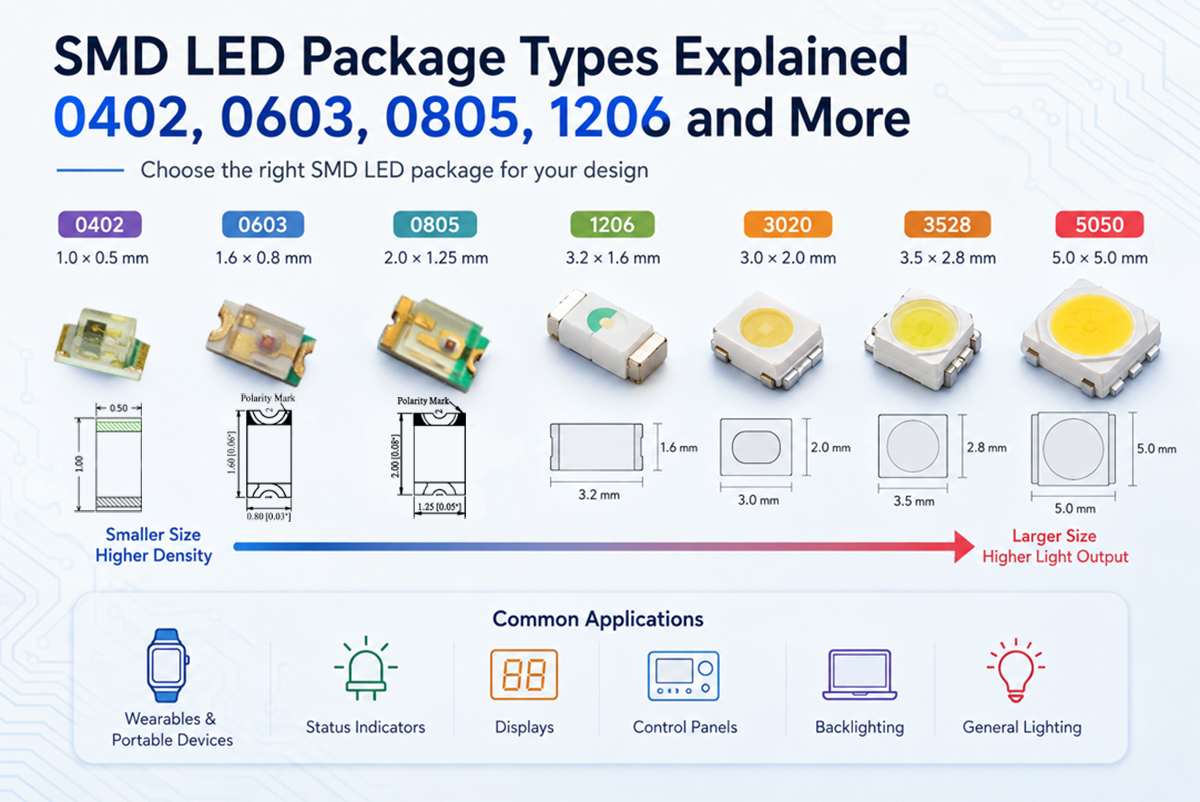

Common SMD LED package sizes include 0402, 0603, 0805, and 1206, while larger formats such as 3020, 3528, and 5050 are also used for different applications.

So, what do these numbers mean, and how do you choose the right SMD LED package for your application?

What Is an SMD LED Package?

SMD stands for Surface-Mount Device. An SMD LED is designed to be mounted directly onto the surface of a PCB rather than inserted through holes in the board.

Compared with traditional through-hole LEDs, SMD LEDs can support compact PCB layouts and automated surface-mount assembly. They are commonly used in consumer electronics, displays, status indicators, backlighting, smart appliances, portable devices, and other electronic products.

Grand Halo offers SMD LEDs in multiple package sizes and mounting configurations, including top-mount, right-angle, and reverse-mount designs. Its product range includes sizes such as 0402, 0603, 0805, 1206, 3020, 3528, and 5050.

What Do SMD LED Package Numbers Mean?

SMD LED package numbers generally describe the approximate physical dimensions of the package.

For example, a package designated as 0603 commonly refers to a package approximately 0.6 mm × 0.3 mm in metric dimensions. Likewise, 0805 generally indicates approximately 0.8 mm × 0.5 mm.

The naming convention can vary depending on whether a manufacturer uses metric or imperial designations, so engineers should always confirm the actual dimensions in the manufacturer's datasheet or product specification.

Common SMD LED Package Sizes

The dimensions above are commonly used metric package designations. However, package naming conventions can vary, so product datasheets should always be used to confirm the exact mechanical dimensions.

Grand Halo's SMD LED portfolio includes 0603/1608, 0805/2012, 1206/3015, 1208/3020, 1309/3224, 1306/3214, and other package configurations.

0402 SMD LEDs: When PCB Space Is the Priority

0402 is one of the smallest package formats in Grand Halo's SMD LED portfolio.

Its compact footprint makes this type of package suitable for designs where PCB space is highly limited. When every millimeter of board space matters, a smaller LED package can give engineers greater flexibility when arranging components.

Potential Applications for Small SMD LED Packages

Small packages can be considered for:

• Compact consumer electronics
• Portable electronic devices
• Miniature status indicators
• High-density PCB designs
• Space-constrained control panels

However, smaller package size can also create greater challenges during PCB assembly, optical design, and inspection. The right package should therefore be selected based on the complete product design rather than footprint alone.

0603 SMD LEDs: Compact and Versatile

0603 is another compact SMD LED package commonly considered for space-constrained electronics.

Grand Halo offers 0603/1608 SMD LED configurations, including different package heights and product structures.

A 0603 package can be useful when a product needs a compact indicator while still requiring practical visibility and manufacturability.

When evaluating a 0603 LED, engineers should consider:

• Available PCB space
• Required brightness
• Viewing angle
• LED color
• Package height
• Assembly process

0805 SMD LEDs: A Common General-Purpose Option

0805 packages provide a larger footprint than 0402 and 0603 while remaining compact enough for many PCB applications.

Grand Halo offers 0805/2012 SMD LED products in different configurations, including single-color and dual-color options.

When Should You Consider an 0805 LED?

An 0805 SMD LED can be considered when the design requires a balance between compact dimensions and practical optical performance.

Potential applications include:

• Status indicators
• Consumer electronics
• Control panels
• Electronic devices
• Backlighting and display-related applications

As with any LED package, the appropriate choice depends on the actual electrical and optical specifications of the component.

1206 SMD LEDs: More Space for Different Designs

1206 is a larger SMD package than 0402, 0603, and 0805.

The larger package format can provide additional design flexibility for applications where an extremely small footprint is not necessary.

Grand Halo offers 1206/3015 SMD LED configurations, including inner-lens and right-angle designs.

For applications requiring a specific light-emitting direction, a right-angle configuration may be useful because the orientation of the LED can be incorporated into the mechanical and PCB design.

3020, 3528, and 5050 SMD LED Packages

SMD LED packages are not limited to 0402, 0603, 0805, and 1206.

Larger formats such as 3020, 3528, and 5050 are also commonly used in LED applications.

3020 SMD LEDs

A 3020 package is approximately 3.0 mm × 2.0 mm in metric dimensions.

Grand Halo offers 1208/3020 right-angle SMD LED configurations.

This type of configuration can be useful when the LED needs to emit light in a direction different from the PCB surface.

3528 SMD LEDs

3528 packages are approximately 3.5 mm × 2.8 mm.

They are commonly used in applications such as indicators, displays, and lighting. Grand Halo lists 3528 among its available SMD LED sizes.

5050 SMD LEDs

5050 packages are approximately 5.0 mm × 5.0 mm and provide a larger footprint than many compact SMD LED formats.

Grand Halo lists 5050 among its SMD LED package sizes.

Because package size alone does not determine optical output, engineers should compare the actual electrical, optical, and thermal specifications of individual 5050 products before selecting one for a specific application.

Mini Type LED vs. Standard SMD LED Packages

Not every compact LED application requires the same package structure.

Mini Type LED Lamps use a lead-frame-type construction and can provide another option for applications requiring a compact LED component. Grand Halo lists Mini Type LED Lamps separately from its PCB-type Surface Mount LEDs.

When deciding between different LED constructions, engineers should consider:

• PCB space
• Mechanical structure
• Mounting requirements
• Light-emitting direction
• Product height
• Assembly method

The smallest package is not necessarily the best choice if the mechanical or optical requirements of the product call for a different structure.

What Is a Molding Type SMD LED?

Molding Type SMD LED Lamps are another product category in Grand Halo's LED component portfolio.

Grand Halo describes its Molding Type SMD LED Lamps as using a reflector coating type structure, distinguishing them from its PCB-type Surface Mount LEDs and lead-frame-type Mini Type LED Lamps.

This means that package selection should not be based solely on the external dimensions shown in a product number. The internal package structure and optical design can also influence how the LED performs in the final product.

How Does SMD LED Package Size Affect Product Design?

Package size can affect several aspects of product development.

PCB Space

Smaller packages require less board area and can help engineers design more compact PCBs.

However, the PCB footprint must always match the manufacturer's recommended land pattern and assembly specifications.

Mechanical Design

LED package height and orientation can affect how the component fits inside the product enclosure.

For example, a right-angle LED can direct light toward the side of the PCB, while a top-mount LED emits light primarily from the top surface.

Optical Design

Package dimensions are only one part of optical performance.

Engineers should also evaluate:

• Luminous intensity
• Viewing angle
• Lens structure
• Emitting direction
• Color or wavelength
• Light distribution

Two LEDs with similar package dimensions can have different optical characteristics.

Manufacturing and Assembly

SMD LEDs are designed for surface mounting and can be integrated into automated PCB assembly processes.

However, extremely small components can require more precise placement and inspection during manufacturing. Package selection should therefore take the intended assembly process into account.

How to Choose the Right SMD LED Package

Choosing an SMD LED package should begin with the requirements of the final product.

1. Determine the Available PCB Space

Start by identifying the maximum footprint and component height available on the PCB.

If board space is extremely limited, smaller packages such as 0402 or 0603 may be worth considering.

If space is less restrictive, larger packages may provide additional design options.

2. Define the Required Optical Performance

Determine the required:

• Brightness
• Color
• Wavelength
• Viewing angle
• Emitting direction
• Light distribution

Do not assume that a larger package automatically provides higher brightness. Optical performance depends on the specific LED design and specifications.

3. Select the Appropriate Mounting Configuration

Consider whether the LED should be:

• Top mounted
• Right angle
• Reverse mounted

Grand Halo offers SMD LEDs with different mounting directions, including top mount, right angle, and reverse mount configurations.

4. Consider Electrical Requirements

Compare the LED's:

• Forward voltage
• Forward current
• Power requirements
• Operating temperature
• Electrical tolerances

The selected component should be compatible with the product's driver and circuit design.

5. Consider the Manufacturing Process

The LED should be compatible with the intended PCB assembly process and production volume.

For mass production, engineers should also consider component consistency, supply availability, quality control, and long-term manufacturing support.

6. Consider Customization Requirements

Standard package sizes may not always meet the requirements of a specialized product.

Grand Halo states that its LED components can be customized in size and emitting color, and that it can follow customer samples to develop, design, and manufacture products for mass production.

For products with unusual mechanical or optical requirements, discussing customization with the LED manufacturer can be more practical than trying to adapt the entire product around an off-the-shelf component.

SMD LED Package Selection Checklist

Before selecting an SMD LED, consider the following factors:

SMD LED Package Size Is Only the Starting Point

0402, 0603, 0805, 1206, 3020, 3528, and 5050 are useful package designations, but the package number alone does not tell you whether an LED is right for your product.

The best choice depends on the relationship between package size, PCB layout, optical performance, electrical characteristics, mounting direction, mechanical constraints, and manufacturing requirements.

For highly compact designs, smaller packages such as 0402 and 0603 can help conserve PCB space. For general-purpose applications, 0805 and 1206 provide additional package options. Larger formats such as 3020, 3528, and 5050 can be considered when the application requires a different package footprint or optical configuration.

The right selection should always be based on the actual specifications of the individual LED rather than package size alone.

Find the Right SMD LED for Your Application

Grand Halo offers a broad selection of Surface Mount LEDs in different package sizes, mounting directions, and configurations. Its LED component portfolio also includes Mini Type LED Lamps, Molding Type SMD LED Lamps, PLCC SMD LEDs, Standard LEDs, and High Power LEDs.

If you are developing a new electronic product or need a specific LED package, size, color, or configuration, contact Grand Halo to discuss your application requirements and component options.
